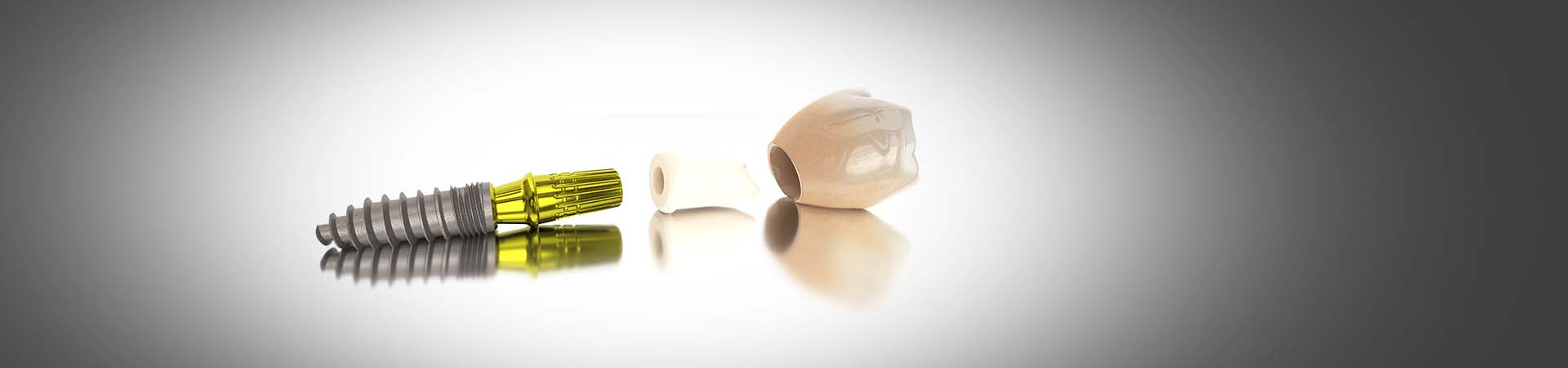

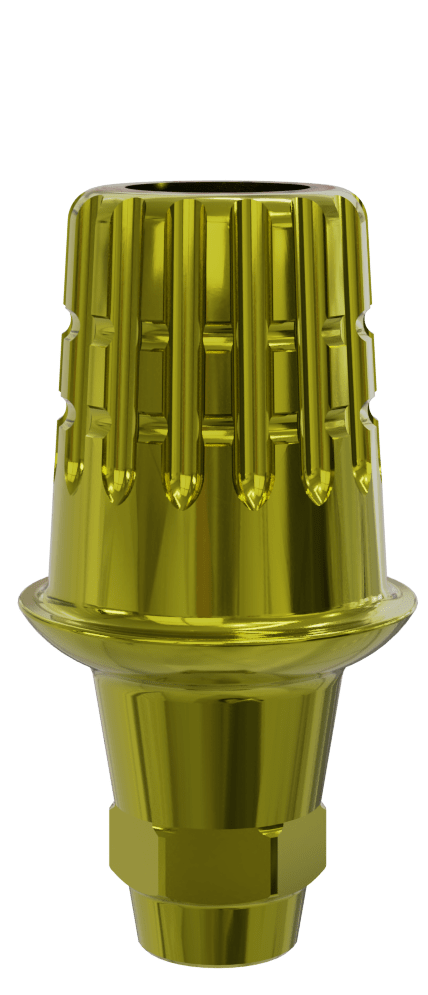

ICA Individual Connection Abutment GH1 The ICA Abutments and the corresponding zircon Abutments (ICA Caps) enable the laboratory to manufacture a costeffi cient individual hybrid Abutment relatively quickly. The titanium bonding base is equipped with longitudinal grooves so that the ICA Cap can be adjusted on the model and adapted to the tooth position. After checking the gingival margin, the Abutment is adjusted with a hydraulic turbine, and the hybrid Abutment can be bonded. The ICA-Caps are available in diff erent versions: Straight 0° assemblies with gingival heights of 1 mm | 3 mm | 5 mm Assemblies in angles of 15°/ 22° with gingival heights of 3 mm | 5 mm The maximal torque is 30 ncm * Indication of height from the implant platform

ICA Individual Connection Abutment GH1 The ICA Abutments and the corresponding zircon Abutments (ICA Caps) enable the laboratory to manufacture a costeffi cient individual hybrid Abutment relatively quickly. The titanium bonding base is equipped with longitudinal grooves so that the ICA Cap can be adjusted on the model and adapted to the tooth position. After checking the gingival margin, the Abutment is adjusted with a hydraulic turbine, and the hybrid Abutment can be bonded. The ICA-Caps are available in diff erent versions: Straight 0° assemblies with gingival heights of 1 mm | 3 mm | 5 mm Assemblies in angles of 15°/ 22° with gingival heights of 3 mm | 5 mm The maximal torque is 30 ncm * Indication of height from the implant platform

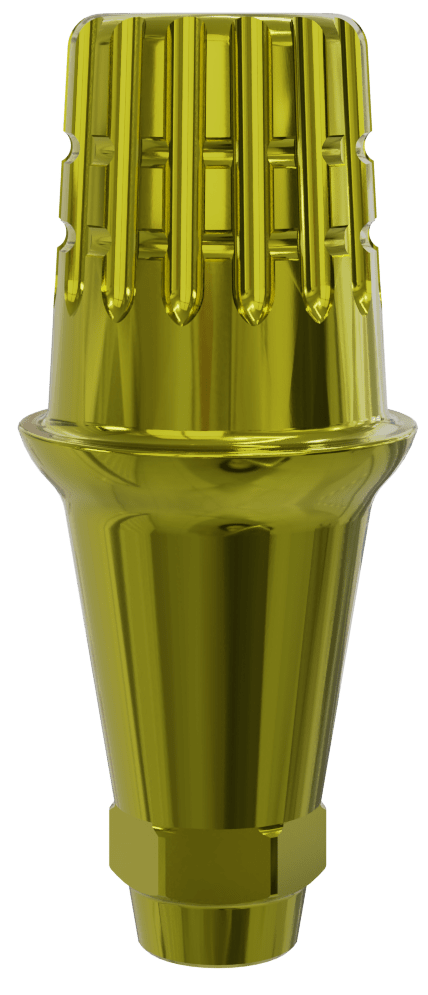

ICA Individual Connection Abutment GH3 The ICA Abutments and the corresponding zircon Abutments (ICA Caps) enable the laboratory to manufacture a costeffi cient individual hybrid Abutment relatively quickly. The titanium bonding base is equipped with longitudinal grooves so that the ICA Cap can be adjusted on the model and adapted to the tooth position. After checking the gingival margin, the Abutment is adjusted with a hydraulic turbine, and the hybrid Abutment can be bonded. The ICA-Caps are available in diff erent versions: Straight 0° assemblies with gingival heights of 1 mm | 3 mm | 5 mm Assemblies in angles of 15°/ 22° with gingival heights of 3 mm | 5 mm The maximal torque is 30 ncm * Indication of height from the implant platform

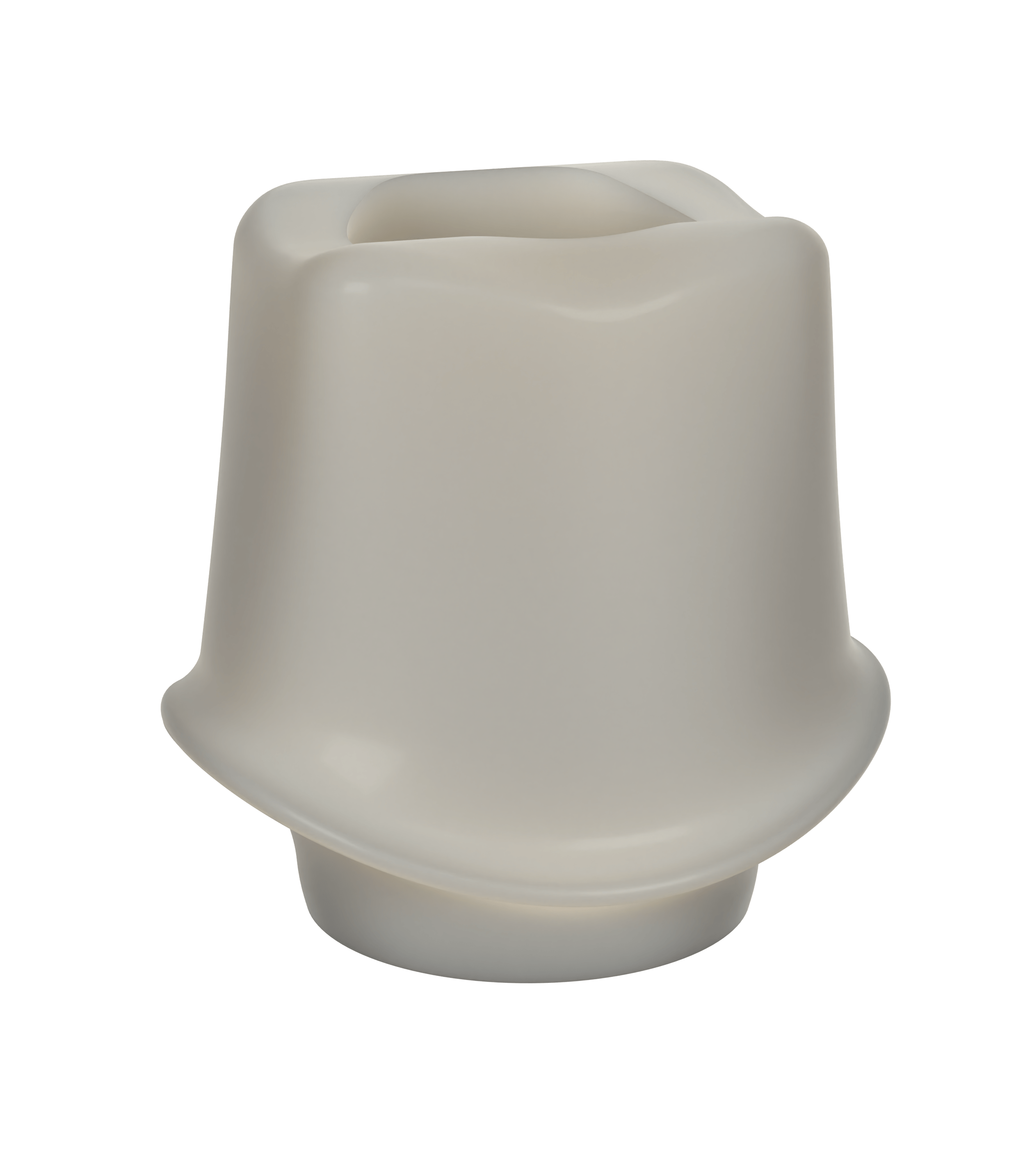

ICA Cap Zircon 0° –GH1-M Gingival height in mm – 1, angulation – 0° Width/Depth 6,0/7,0 mm | Height 7,0 mm

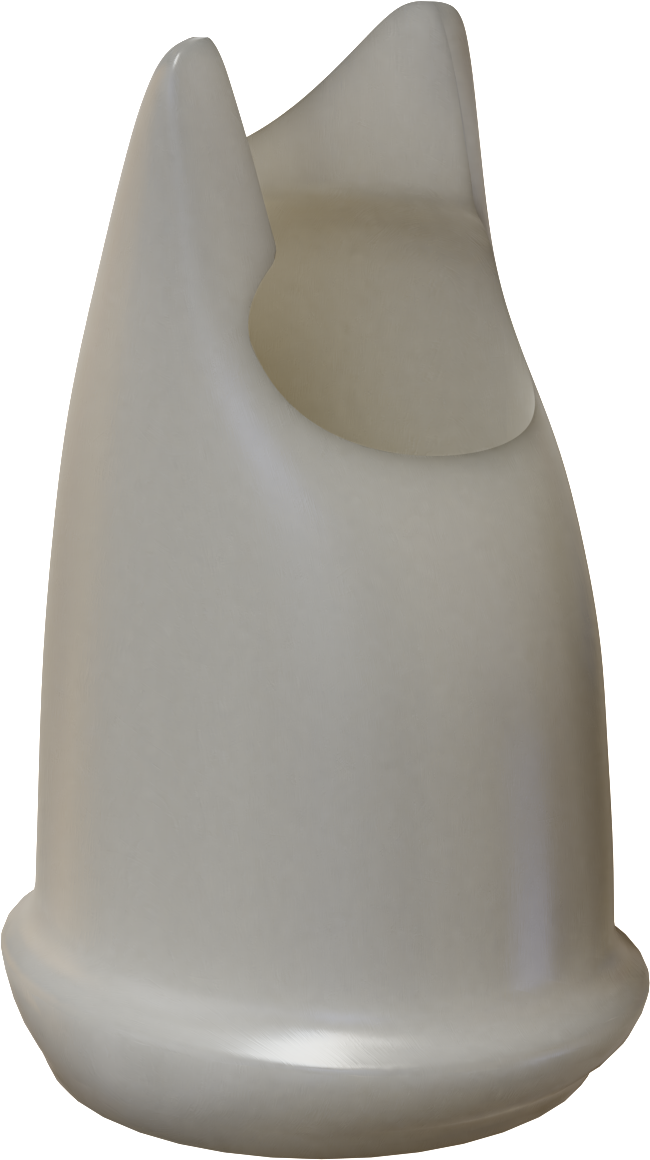

ICA Cap Zircon 0° –GH1-F Gingival height in mm – 1, angulation – 0° Width/Depth 5,0/6,0 mm | Height 9,0 mm

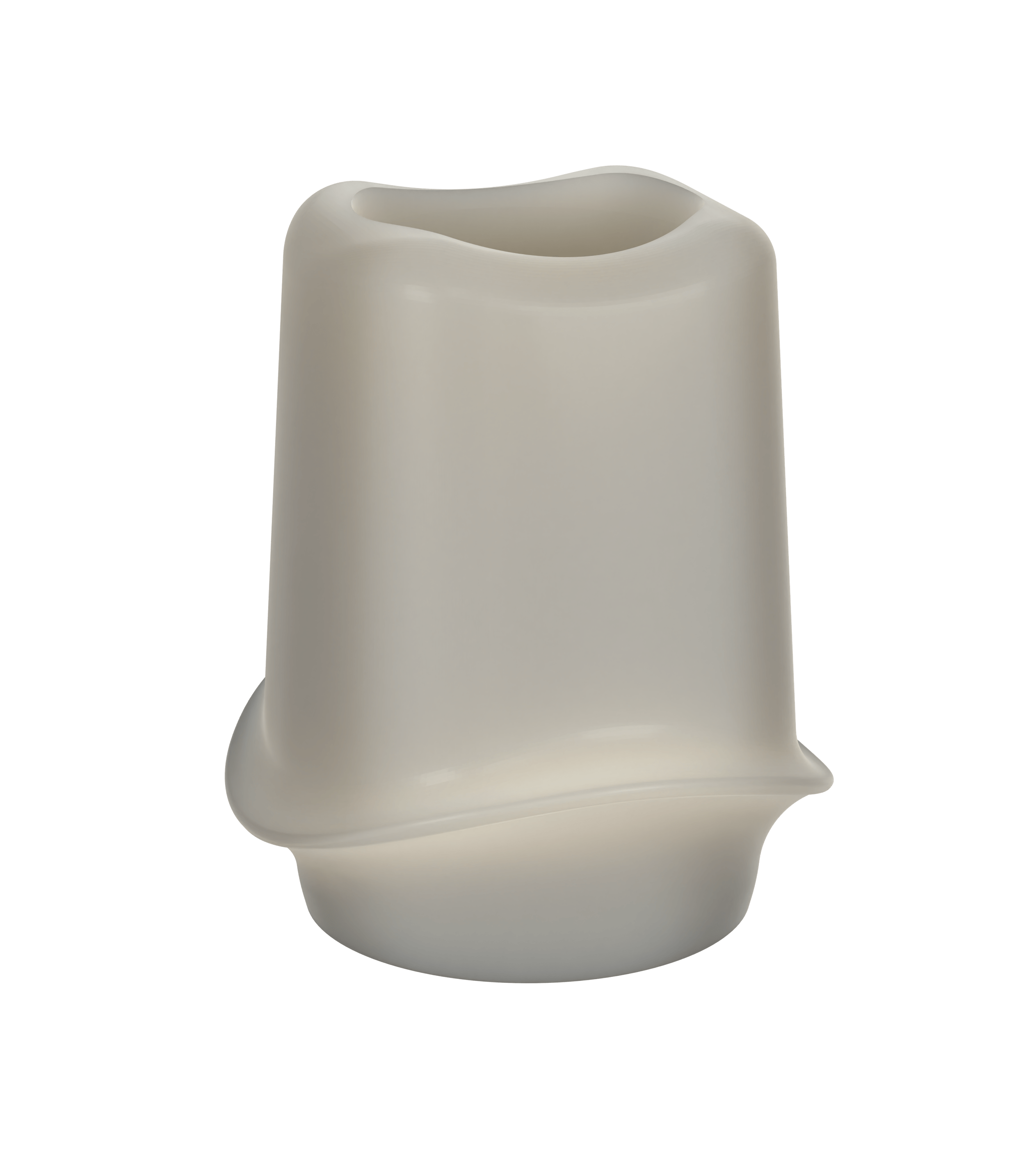

ICA Cap Zircon 0° –GH1-P Gingival height in mm – 1, angulation – 0° Width 6,0 | Height 7,0 mm

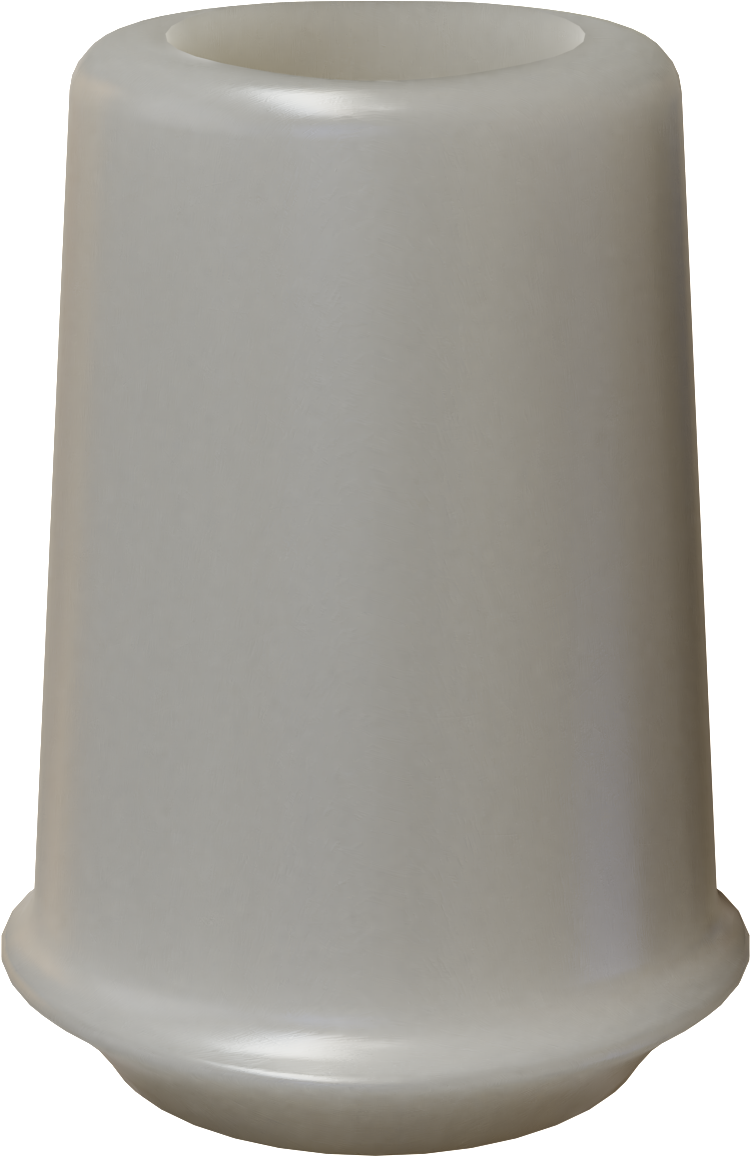

ICA Cap Zircon 0° GH1 – S Gingival height in mm -1, angulation -0° Width/Depth 6,0/7,0 mm | Height 9,0 mm

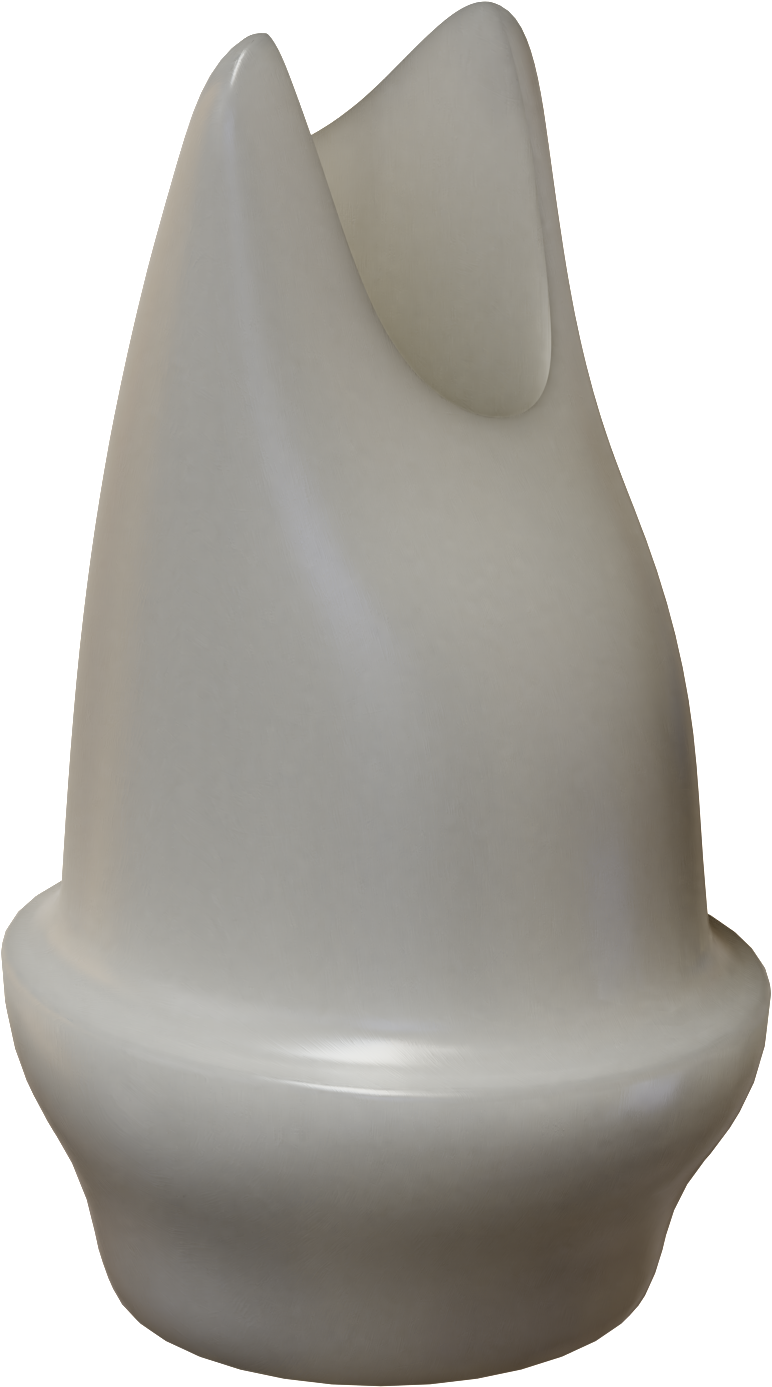

ICA Cap Zircon 0° –GH3-F Gingival height in mm -3, angulation -0° Width/Depth 5,0/6,0 mm | Height 11.0 mm

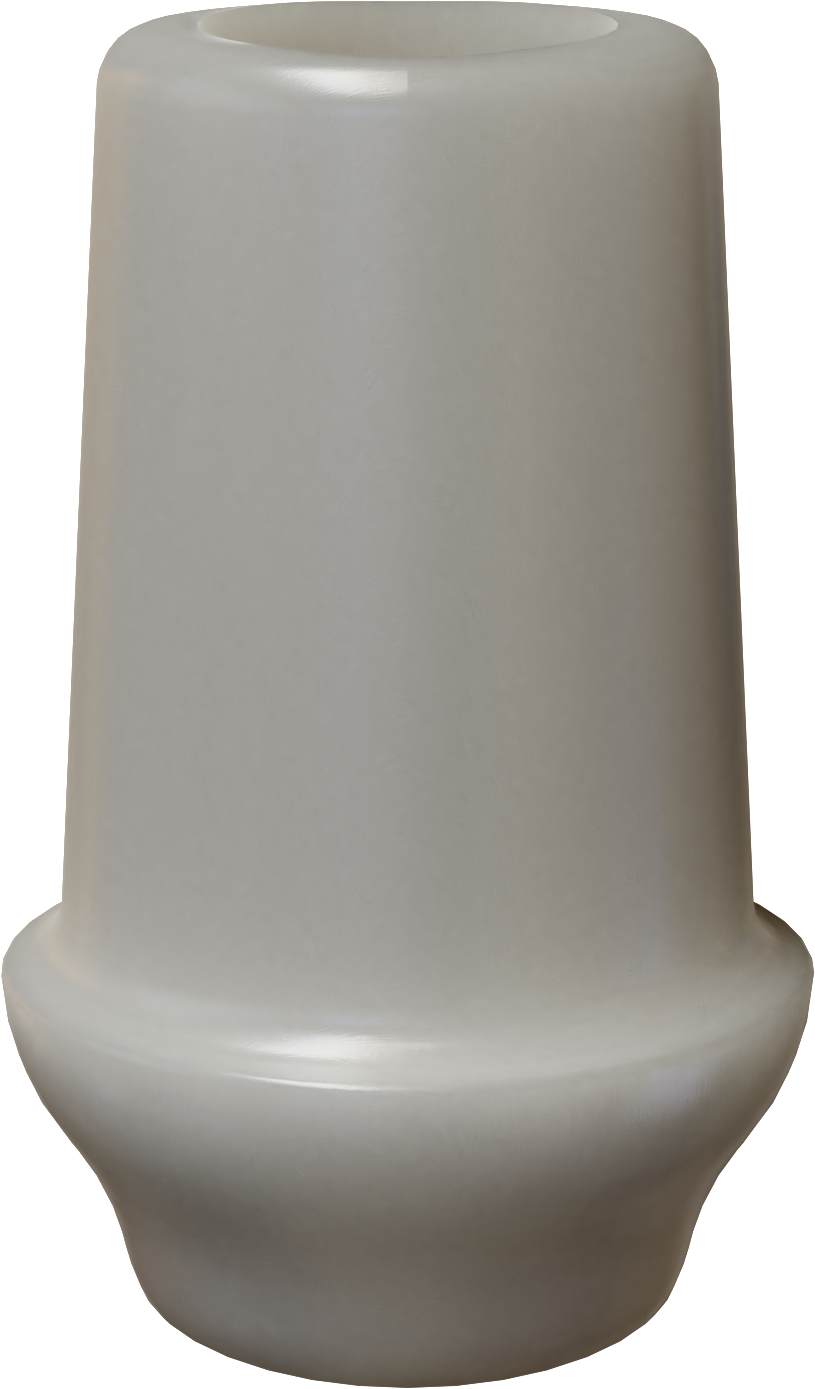

ICA Cap Zircon 0° – GH3-S Gingival height in mm -3, angulation -0° Width/Depth 6,0/7,0 mm | Height 11,0 mm

ICA Cap Zircon 0° – GH5-S Gingival height in mm – 5, angulation – 0° Width/Depth 6,0 | 7,0 mm | Height 11,0 mm

ICA Cap Zircon 0° Telescope Width/Depth 6,5/7,5 mm | Height 11,0 mm

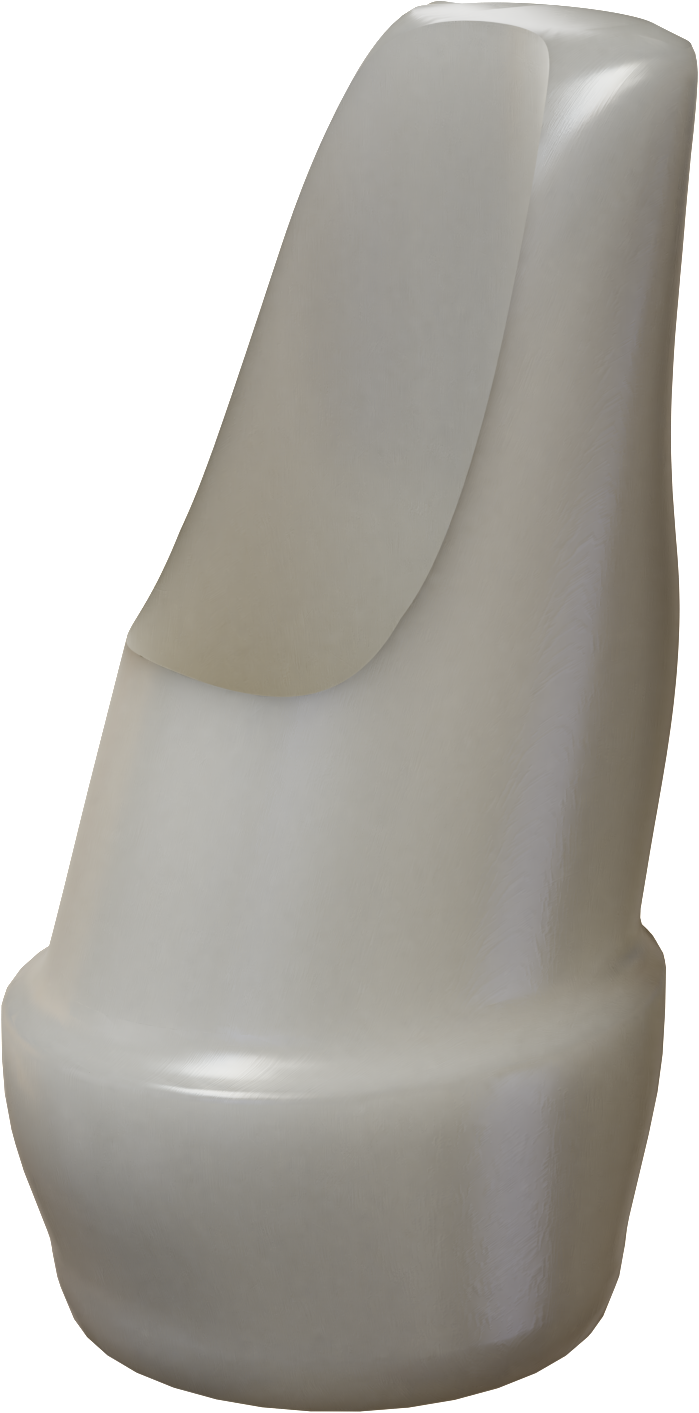

ICA Cap Zircon 15° –GH3-F Gingival height in mm – 3, angulation – 15° Width/Depth 5,0/6,0 mm | Height 11,0 mm

ICA Cap Zircon 15° – GH3-S Gingival height in mm – 3, angulation – 15° Width/Depth 6,0/7,0 mm | Height 11,0 mm

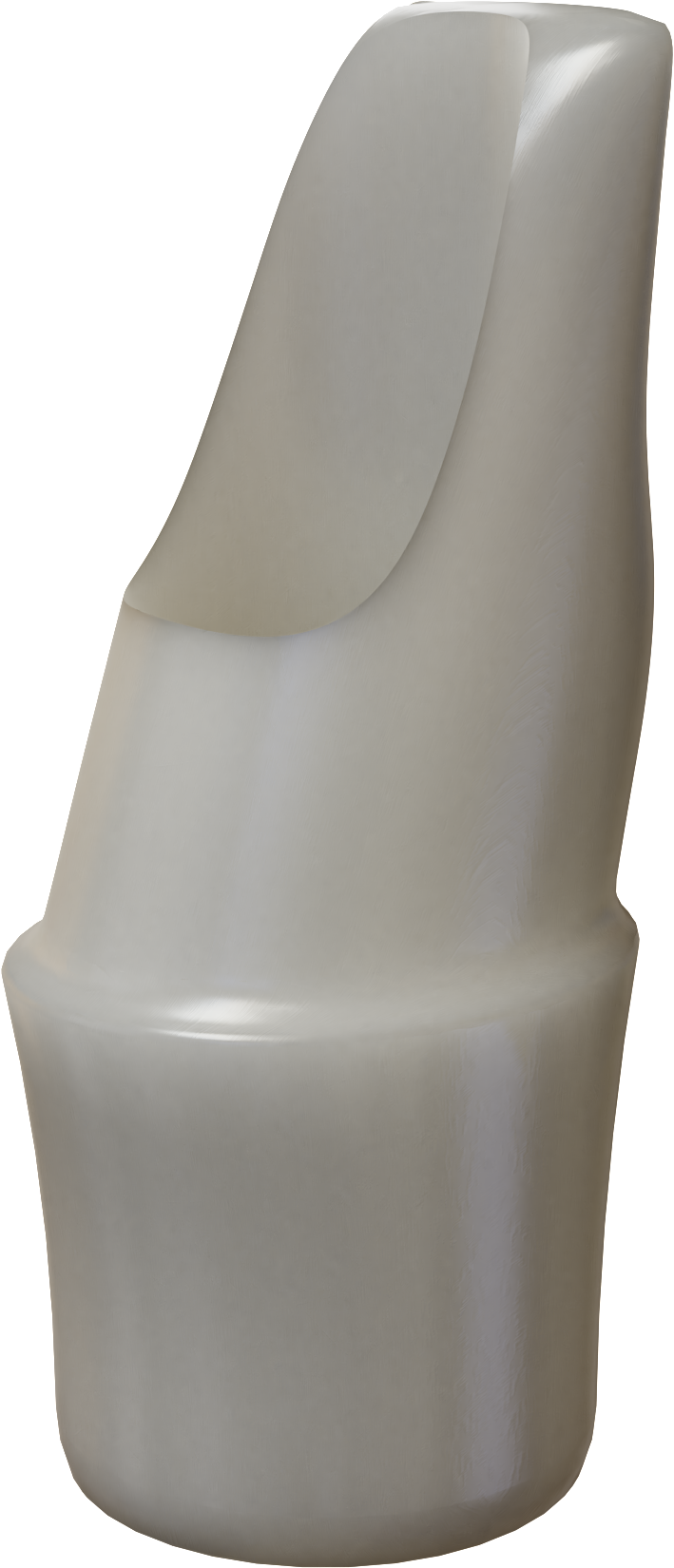

ICA Cap Zircon 15° – GH5-F Gingival height in mm – 5, angulation – 15° Width/Depth 5,0/6,0 mm | Height 11,0 mm

ICA Cap Zircon 15° –GH3-FL Gingival height in mm – 3, angulation – 15° Width/Depth 6,0/7,0 mm | Height 11,0 mm

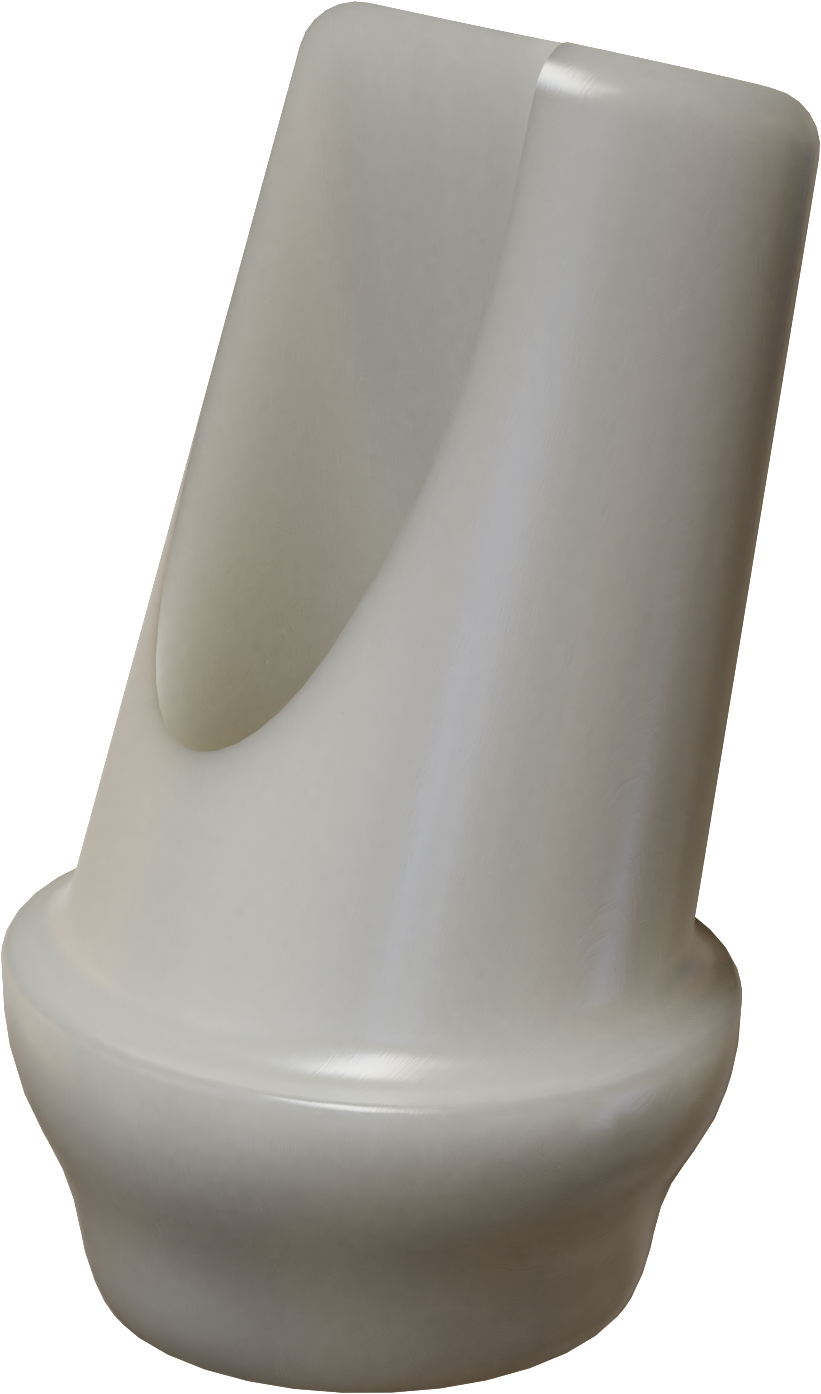

ICA Cap Zircon 15° – GH3-SL Gingival height in mm – 3, angulation – 15° Width/Depth 7,0/8,0 mm | Height 11,0 mm

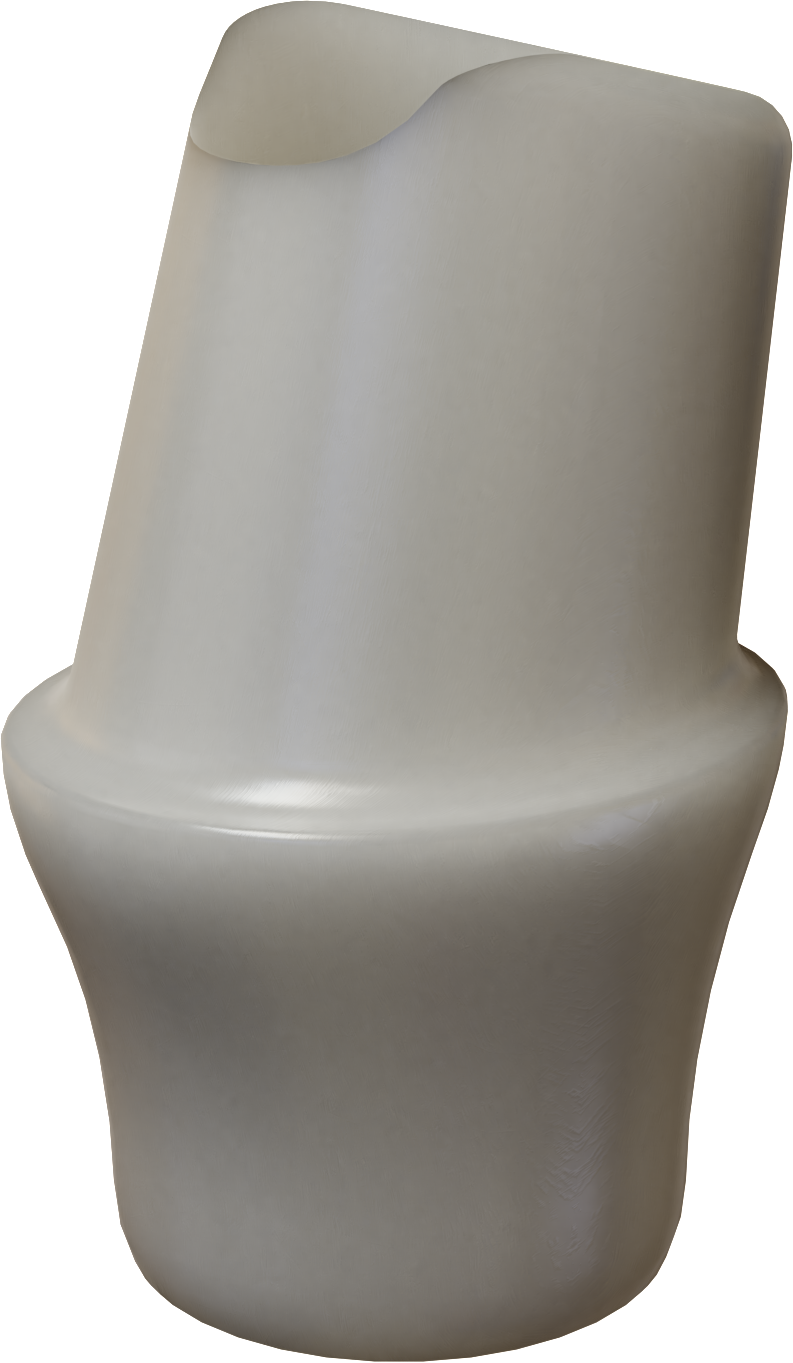

ICA Cap Zircon 15° – GH5-S Gingival height in mm – 5, angulation – 15° Width/Depth 6,0/7,0 mm | Height 11,0 mm

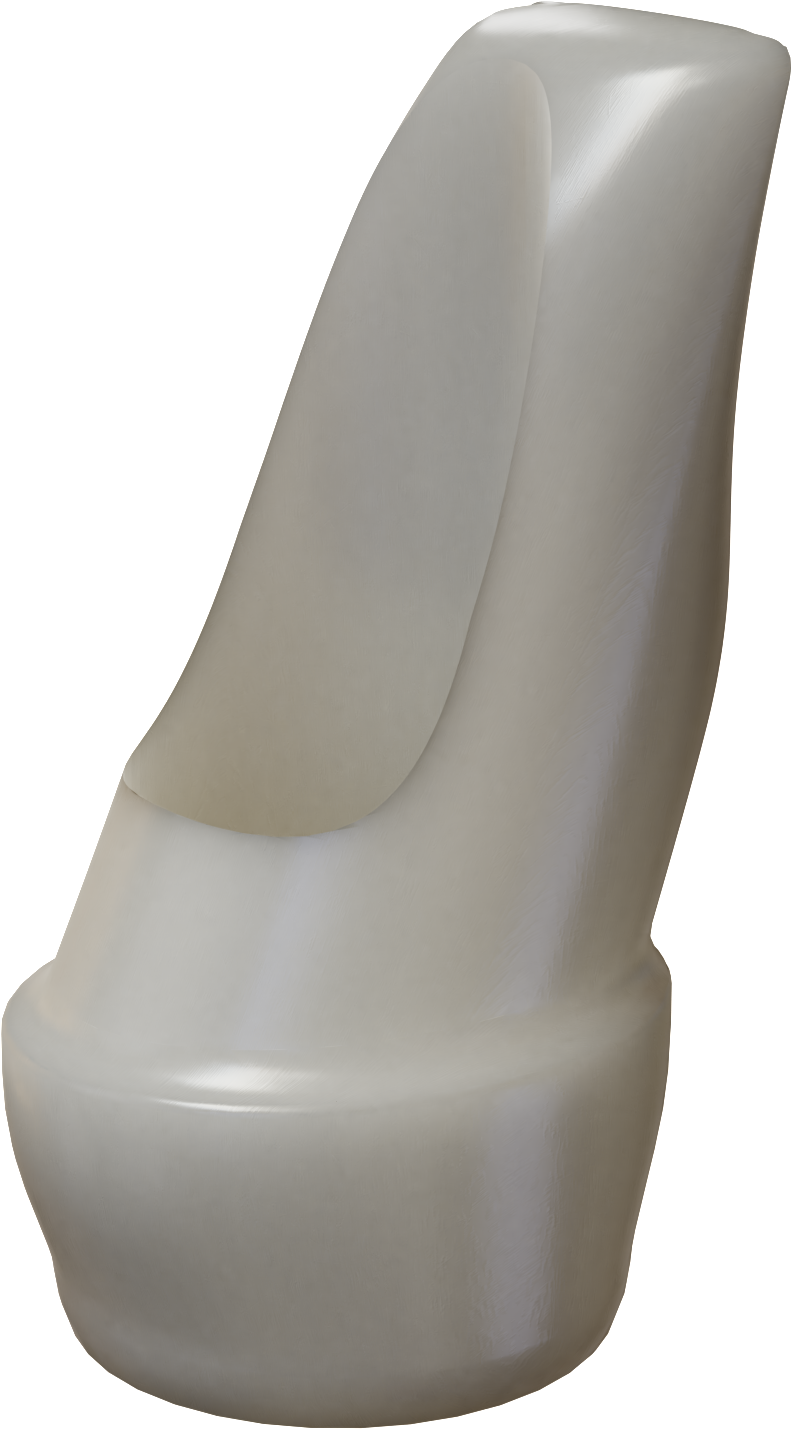

ICA Cap Zircon 22° – GH3-F Gingival height in mm – 3, angulation – 22° Width/Depth 5,0/6,0 mm | Height 11,0 mm

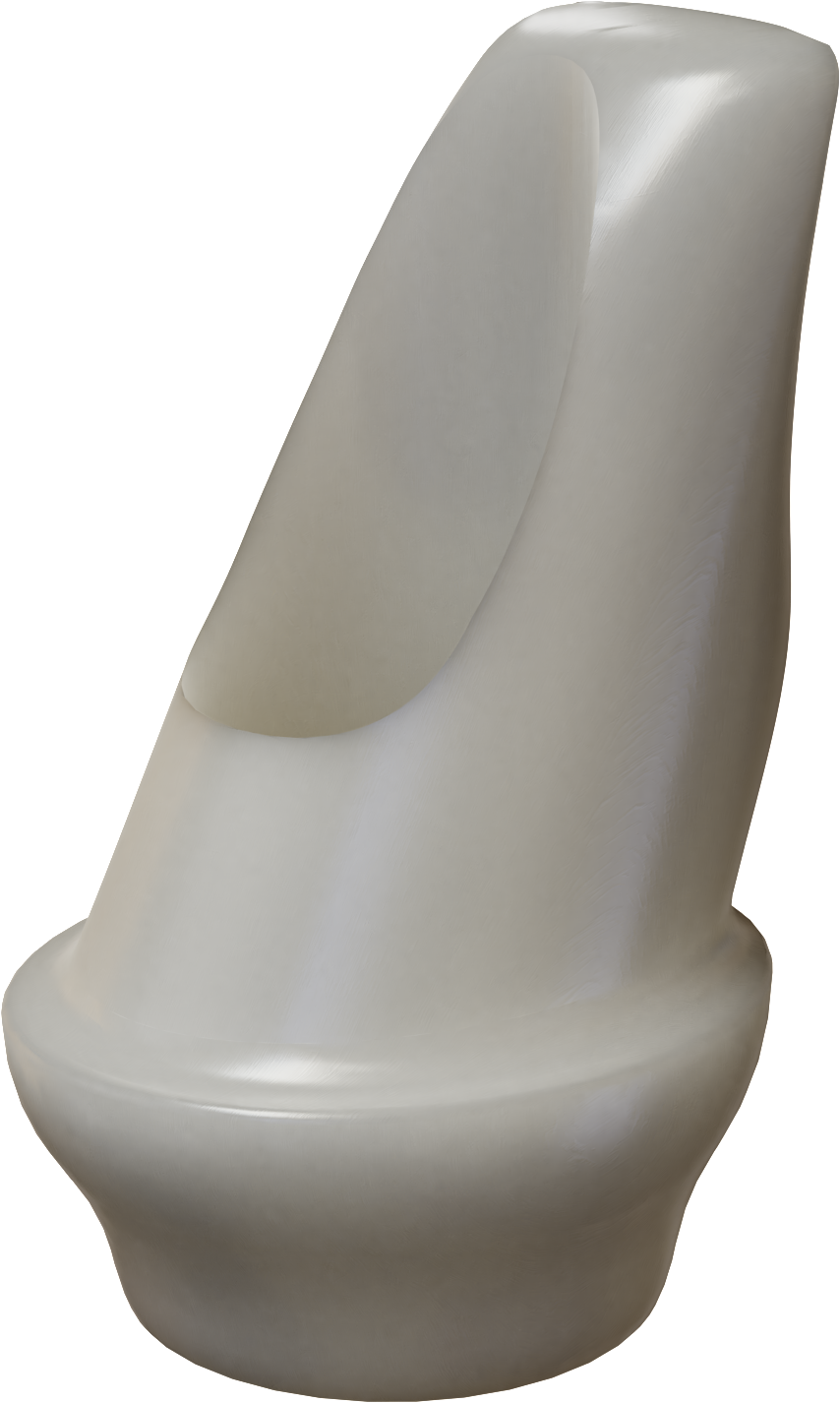

ICA Cap Zircon 22° – GH3-FL Gingival height in mm – 3, angulation – 22° Width/Depth 6,0/7,0 mm | Height 11,0 mm

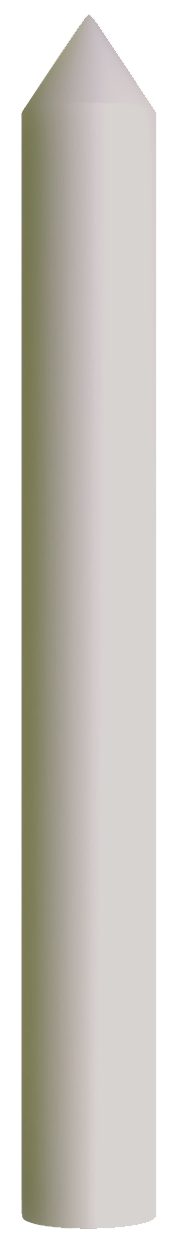

ICA Bonding Aid (5 pcs./pack) ø 2.1 mm, Height: 20 mm | Material: plastic

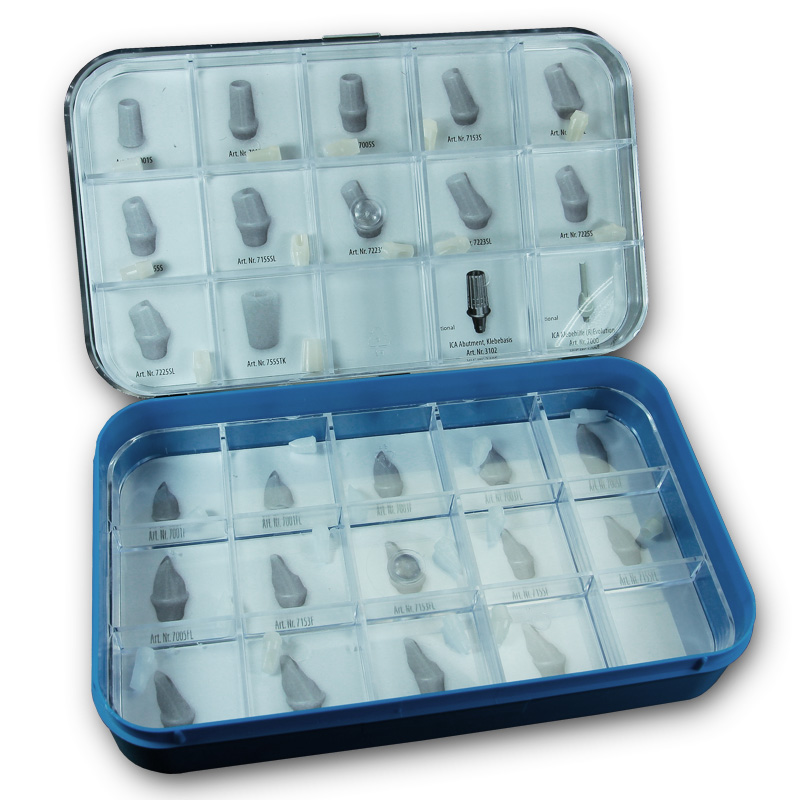

ICA Sample Box Sample Box containing Sample ICA Caps for anterior and posterior sites. Technicians can use these samples to select the suitable ICA Caps for their model. incl. 26 Sample ICA Caps| Material: Plastic

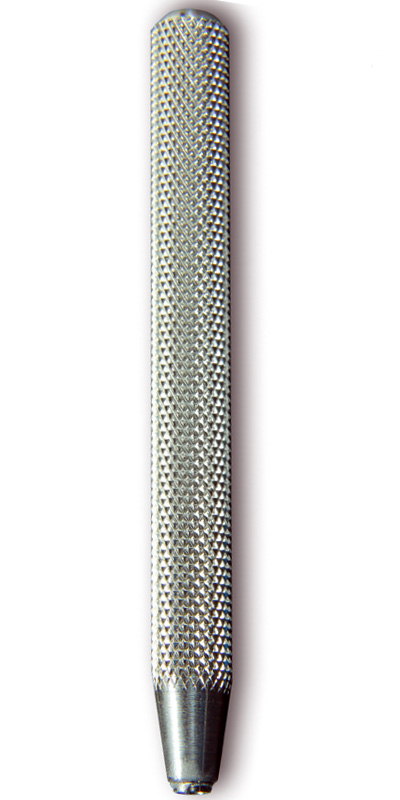

Abutment Support with holder (dental laboratory)
